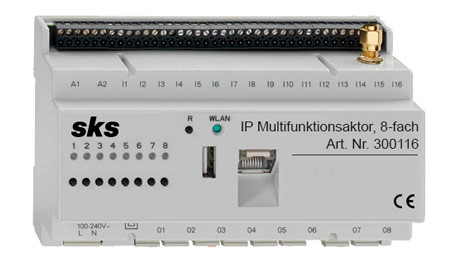

IP Multi function actuator, 8-fold 300116

The SKS IP multifunctional actuator 8-fold with its 18 inputs (16 digital and 2 analogue) and all in all 8 outputs is used for various tasks in the overall system

The SKS IP multifunctional actuator 8-fold with its 18 inputs (16 digital and 2 analogue) and all in all 8 outputs is used for various tasks in the overall system: it controls for example door openers, door operators, stair case lights and also monitors temperatures, locking states or light switches. Thus typical tasks of building automation in residential and utilisation units can be controlled, such as operating blinds or lights including querying the corresponding built-in switches.

  • Built-in voltage supply 230 V
  • 8 switch outputs16 A/230 V
  • Local operation of the switch outputs
  • Status LEDs for switch outputs
  • Annual timer integrated
  • 2 A/D inputs for sensors 0 to10 V/4 to 20 mA, parametrizable
  • 16 digital inputs for potential free contacts
  • Network plug RJ45
  • Working temperature -5 °C bis +45 °C
  • Protection type IP20

Dimensions: 144 x 90 x 59 mm
without antenna (8 DU)
