SKS COMFORT IP door station

The SKS COMFORT IP door station forms a stylish entry into the SKS IP world and thus allows for building extensive systems as to user numbers and wire lengths.

An excellent, clear transmission of speech and brilliant image quality go without saying.

The SKS IP world does not exclude the reliable SKS BUS technology − on the contrary, several SKS BUS segments can be combined with SKS IP components via the IP backbone and hence offer nearly unlimited possibilities.

Almost barrier-free
following DIN 18040


Available in two sizes:

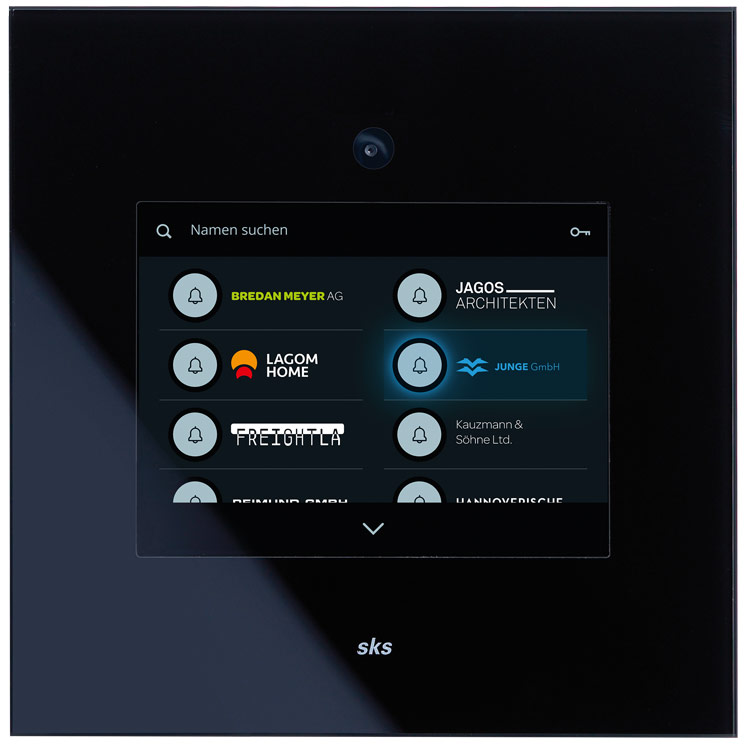

COMFORT IP door station 5.7“

Features

  • Compatible with all SKS BUS audio and video indoor stations
  • 14.5 cm (5.7“) sized touch display
  • Easy and intuitive operation
  • More or less barrier-free
  • Central configuration via web interface
  • All kinds of configurations in a system are stored and managed centrally
  • PoE supplied
  • Bell button as text or image (jpg, png oder svg)
  • Code lock function with random number display
  • Various levels for e. g. different departments or floors possible
  • Protected against vandalism by safety glass

Two possible ways of installing

Stand alone in a flush-mounted box or a door side panel, here the COMFORT Door station protrudes just 8 mm, alternatively flush-mounted installation in a housing with stainless steel front panel, a stele or post box system.

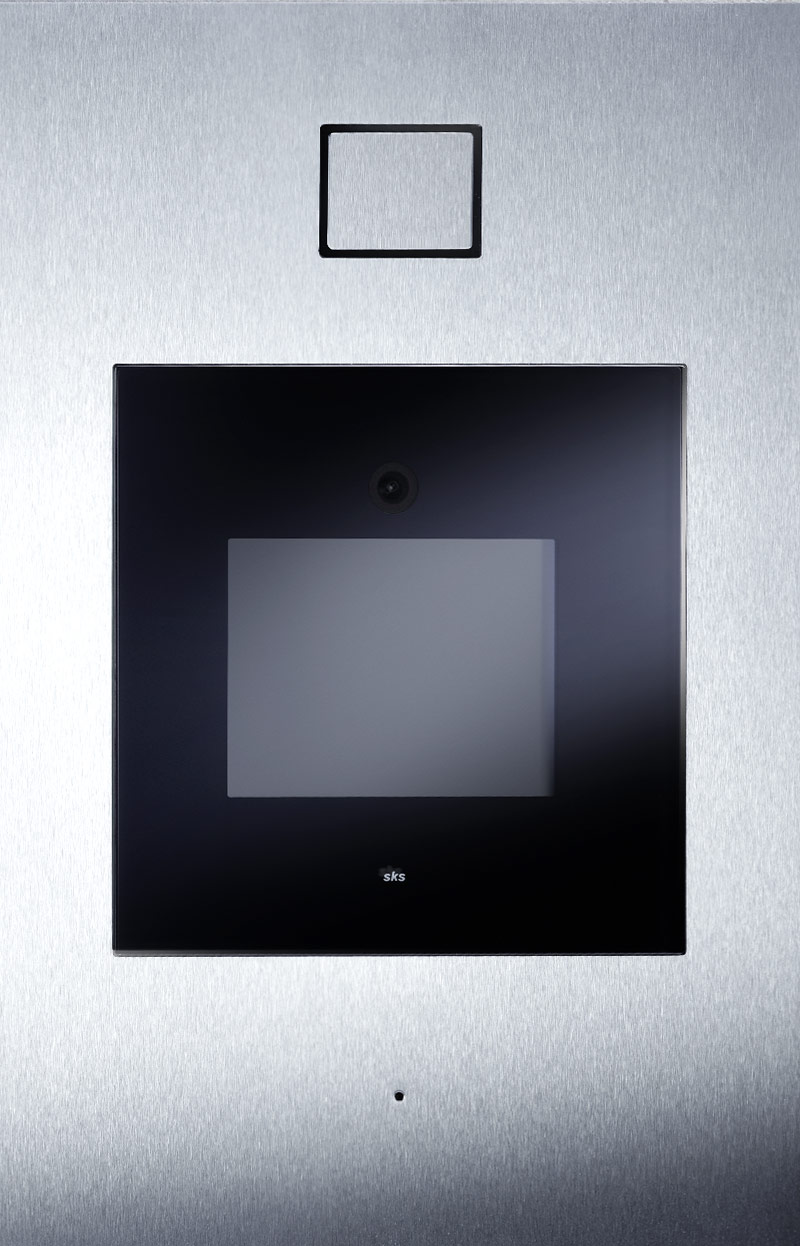

To be seen in the picture:
Flush-mounted installation in a housing with stainless steel front panel

Item No.DescriptionColor
600047COMFORT IP door station, PoEblack
600048COMFORT IP door station, PoEwhite
600049COMFORT IP door station ML, PoE*black
600050COMFORT IP door station ML, PoE*white
600057In-wall housing for screwless installation

* For the installation in item 600057 or individual door stations manufactured by SKS

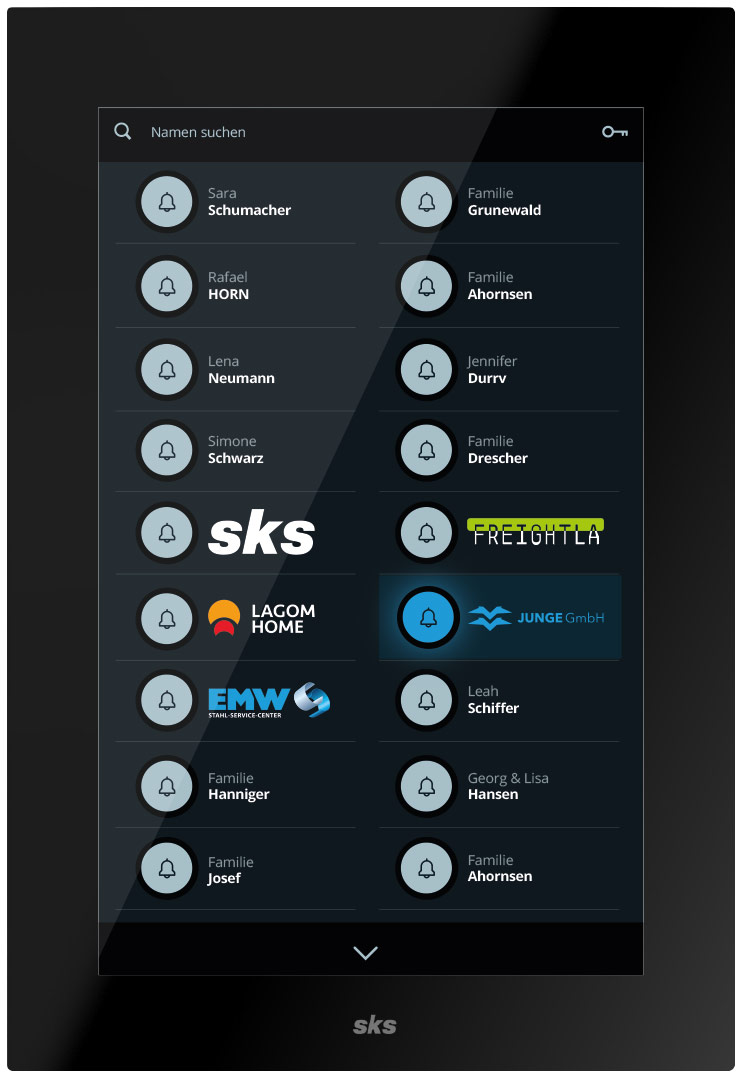

COMFORT IP door station 10.1“

A high-resolution 25.65 cm (10.1”) color display guarantees an easy, intuitive operation as smartphone and tablet users are used to. The self-explanatory graphic presentation is accompanied by a visual feedback. These and other features make the COMFORT 10.1“ an attractive product for each age group.

The matching housing consists of a screwless stainless steel front panel and an in-wall housing.

Features

  • Compatible with all SKS BUS audio and video indoor stations
  • 25.65 cm (10.1“) sized touch display
  • Easy and intuitive operation
  • Central configuration via web interface
  • All kinds of configurations in a system are stored and managed
  • PoE supplied
  • Bell button as text or image (jpg, png oder svg)
  • Comfortable search function
  • Code lock function with random number display
  • Flush-mounted installation in a housing with stainless steel front panel, a stele or post box system
Item No.DescriptionColor
600052COMFORT IP display 10.1“, MLblack
600058In-wall housing for screwless installation
