SKS doorbell push buttons

The doorbell push buttons assortment of SKS features high quality, a great diversity of materials and a simple handling.

When ordering please include the plate number provided in the door station.

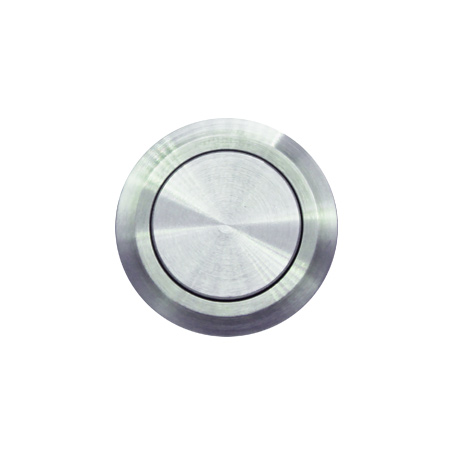

800348 Push button switch

V2A stainless steel,
with flat rim

External dimension: ø 22 mm
Punch dimension: ø 18 mm

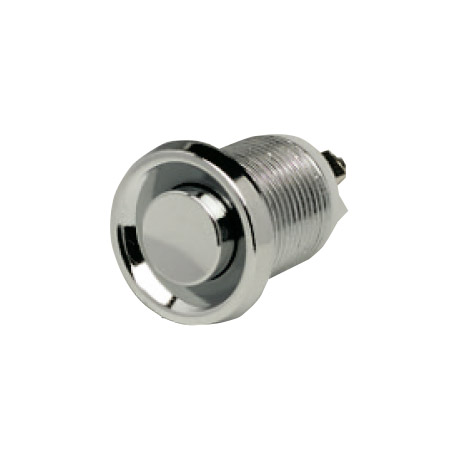

800402 Indented bell buttons

chrome-plated
(for KINI door stations)

External dimension: ø 20 mm
Punch dimension: ø 15 mm

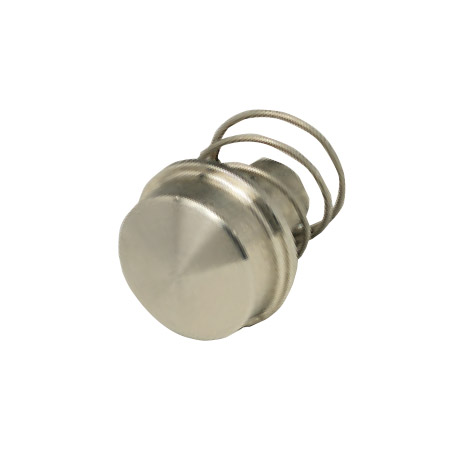

800673 Raised contact

V4A anti-vandalism,
with spring

External dimension: ø 16 mm
Punch dimension: ø 14 mm

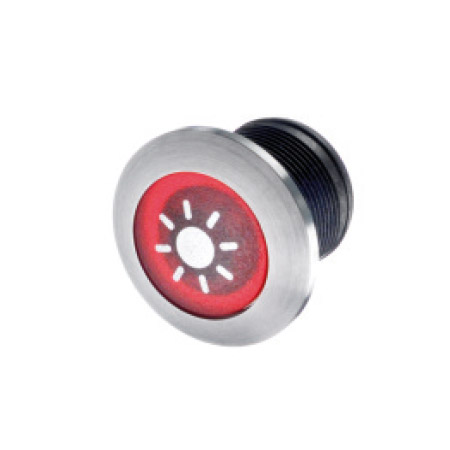

800383 Light switch

silver-colored,
illuminated with LED, 12 V max.

External dimension: ø 22 mm
Punch dimension: ø 16.2 mm


800363 Flat stainless steel push button switch

with red, white or blue
illuminated blue LED ring.
Supply voltage 12 V max.

External dimension: ø 22 mm
Punch dimension: ø 19 mm

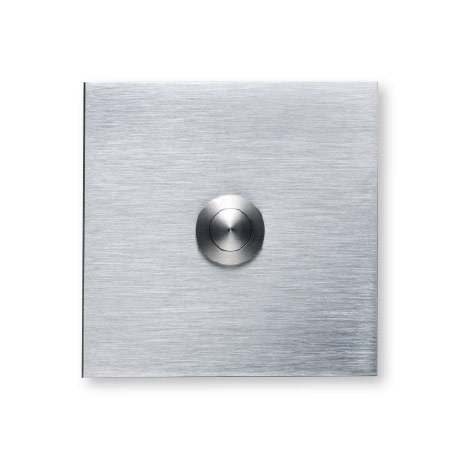

600027 Bell plate in stainless steel (V2A)

The fixing is invisible with 2 holes in the wall, supplied dowels are simply inserted and placed in the wall using the enclosed pins and threaded inserts on the back.

Dimension: 85 x 85 x 6 mm
