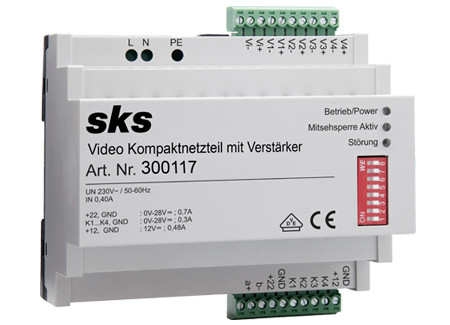

Video compact power supply with amplifier 300117

Usage is only possible in connection with item 300089.

The Video compact power supply with amplifier has the same features as the Video compact power supply 300090. Apart from that it makes it possible to realize distances of up to 350 m between door station and distribution without any further components such as additional senders, receivers or a symmetry amplifier.

Usage is only possible in connection with item 300089.

  • Supply of up to 96 video indoor stations (without parallel operation) and up to four cameras
  • Can be used for up to four risers without any additional components
  • Suitable for connecting a line extension
  • The Video power supply with amplifier allows for distances from the distribution to the door station furthest away from it of up to 350 m.
  • Nominal input voltage: 207 to 253 VAC/50 Hz
  • Working temperature: -5 °C to +45 °C
  • Protection type: IP20

Dimensions: 105 x 90 x 71 mm without terminals (6TE))
