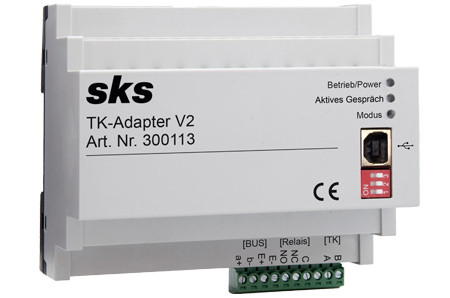

TK Adapter V2 300113

functions as a connection between the SKS BUS and a telephone system

  • Forwarding after a certain time span, time adjustable
  • For each attendee 2 call numbers of up to 24 characters (also special characters) can be configured
  • Redirecting calls during a configurable time span
  • Busy signal
  • Dialling without waiting
  • Can be configured with your personal computer and (limited) via telephone
  • Is needed once per telephone system
  • USB cable enclosed
  • Working temperature from: -5 °C to +45 °C
  • Protection type IP20

Dimensions: 105 x 90 x 71 mm without terminals (6DU)

Description

The TK Adapter V2 functions as a connection between the SKS BUS and a telephone system. Here it is possible to connect up to 15 bell buttons to a telephone system. All telephones communicating with the TK Adapter V2 need to be suitable for DTMF. The TK Adapter V2 needs an analogue port at the telephone system.
