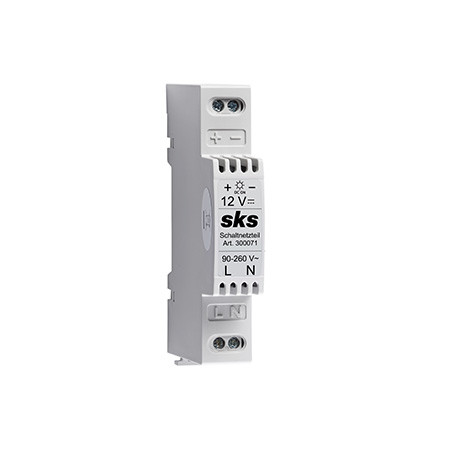

Switching power supply 12 VDC 300071

  • Replacement for switching power supply 800422
  • Nominal input voltage: 100-240 VAC
  • Rated output voltage: 12 VDC
  • Nominal output current: 1 A
  • Working temperature: -5°C bis +50°C
  • Protection type IP20

Dimensions: 18 x 97 x 68 mm (1DU)

Description
Technical Data
Downloads

The switching power supply is used to supply the active distributor 300040, if more than 2 are installed in a BUS line. The power supply is also used to supply various other assemblies.

Primary side
Input rated voltage220 - 240VAC~
Frequency

50 - 60Hz

Secondary side
Output rated voltage12VDC
Output rated currentmax. 1A
Outputmax. 12VA
EMC- StandardEN55022/B; EN61000-4, EN60950-1; UL508
Allgemeines
Temperature-5°C bis +50°C
Humidity5% to 90% non-condensing
HousingPlastic top-hat rail housing
Dimensions (width x height x depth)18 x 97 x 68,5 mm (1TE)
Weight75g
Protection ClassIP20
Protection MeasuresOvervoltage protection, overload protection, current limiter
