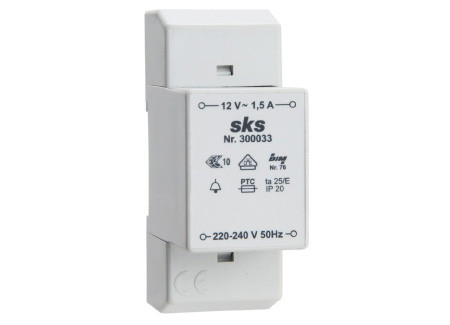

Transformator 12 VAC/1,5 A 300033

Used to supply up to 30 name plate illuminations

  • Used to supply up to 30 name plate illuminations
  • Nominal input voltage: 220 to 240 VAC
  • Rated output voltage: 12 VAC
  • Nominal output current: 1.5 A
  • For panel or surface mounting
  • Working temperature: -10 °C to +55 °C
  • Protection type IP20

Dimensions: 35 x 95 x 64 mm (2DU)

Description
Technical Data
Downloads

The transformator is used to supply the door opener and/or the name plate illumination. In larger units several transformers of type 300033 may be needed. Please mind during planning that additional wires might be needed for the name plate illumination.

Primary side
Input rated voltage220-240VAC
Frequency50Hz
Secondary side
Output rated voltage12VAC / 50Hz
Output rated currentmax. 1,5A
Outputmax. 18VA
General
Temperature-10°C to +55°C
Humidity20% to 90% non-condensing
HousingPlastic top-hat rail housing
Dimensions (width x height x depth)35 x 92 x 64 mm (2TE)
Protection ClassIP20
Protection MeasuresPTC
ApprovalDIN EN 61558 (VDE0570), VDE, ENEC
