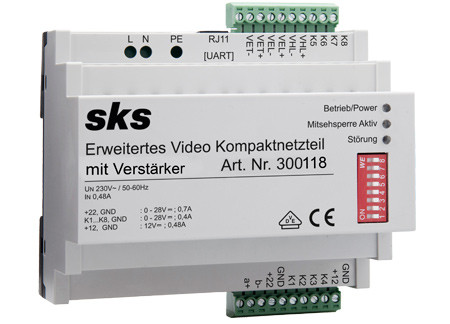

Extended video compact power supply with amplifier 300118
The Extended video compact power supply with amplifier has the same features as the Extended video compact power supply 300092. Apart from that it allows for realizing distances of up to 350 m between door station and distribution without any further components such as additional senders, receivers or a symmetry amplifier.
Usage is only possible in connection with item 300089 or 300091.
- Supply of up to 96 video indoor stations (without parallel operation) and up to 8 cameras
Suitable for connecting a line extension - The Extended video power supply with amplifier allows for distances from the distribution to the door station furthest away from it of up to 350 m
- Nominal input voltage: 207 to 253 VAC/50 Hz
- Working temperature: -5 °C to +45 °C
- Protection type: IP20
Dimensions: 105 x 90 x 71 mm without terminals (6DU)
