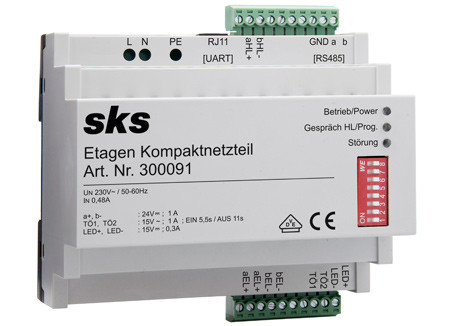

Floor compact power supply 300091
offers the possibility to establish floor lines
The floor compact power supply offers the possibility to establish floor lines. A floor line consists of at least one floor door station and the respective indoor stations. Using the Floor compact power supply it is possible to make a call from a floor door station to an indoor station on the same floor. At the same time it is possible to talk on the main line i. e. from a door station to an indoor station which is not on the very floor line (multiple call routes).
Usage in video systems is only possible in connection with item 300092.
- Supply of up to 96 indoor stations and a maximum of 8 door stations
- Supply of up to 30 name plate illuminations
- Supply of door openers with 12 VAC with max.1 A
- Nominal input voltage: 207 to 253 VAC/50-60 Hz
- Working temperature: -5 °C bis +45 °C
- Protection type IP20
Dimensions: 105 x 90 x 71 mm without terminals (6DU)
